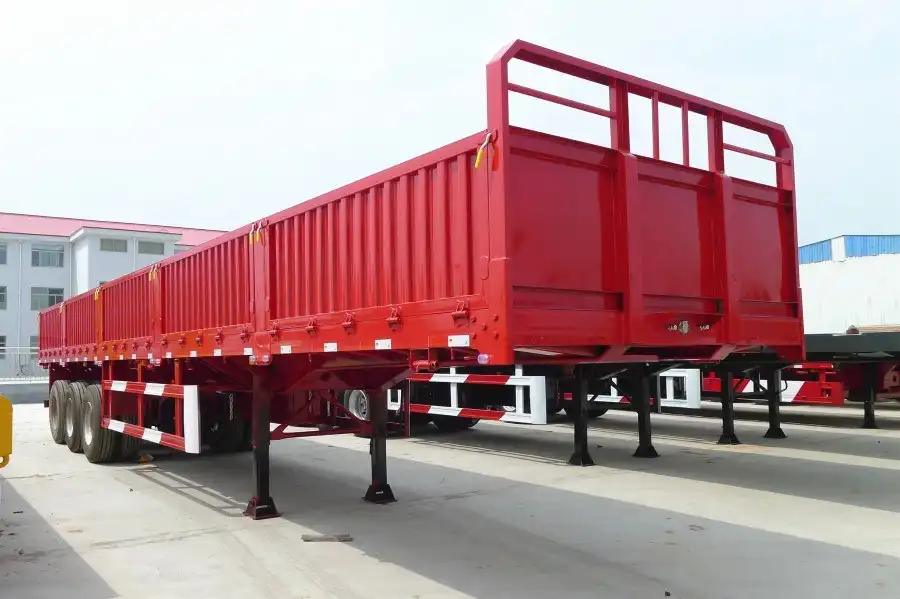

3 Axle Cargo Trailer

• Dimensions: Overall $12500 \times 2500 \times 2550\text{ mm}$ with a $12000 \times 2300 \times 600\text{ mm}$ drop-side cargo box

• Condition: Premium verified options available in both brand new and factory-certified used configurations

• Primary Use: Mid-to-long distance overland distribution of agricultural products, palletized goods, and general dry cargo

• Key Configuration: High-tensile Q345B steel main beams paired with three FUWA 13-Ton maintenance-free axles

Core Advantages and Key Features

When managing regional transport networks, verifying structural specifications and asset durability guarantees a highly profitable operation. The 3 Axle Cargo Trailer offers exceptional performance through specialized commercial vehicle engineering:

• Superior Chassis Durability:

  Built with a $500\text{ mm}$ main beam welded from high-tensile Q345B steel ($14\text{mm}$ upper, $16\text{mm}$ lower, $8\text{mm}$ middle plates) alongside Q235 channel steel side beams to prevent heavy-load sagging.

• Premium Maintenance-Free Axles:

  Configured with three genuine FUWA 13-Ton axles, featuring an optimized $150,000\text{ km}$ maintenance-free design that minimizes fleet downtime and reduces operational expenses.

• Reinforced Suspension System:

  Equipped with a heavy-duty 10/10/10 multi-leaf spring mechanical suspension layout, balancing stress distribution perfectly across all twelve tires under maximum payloads.

• Advanced Braking Reliability:

  Outfitted with six double air chambers connected to dual-circuit compressed air brakes, providing prompt braking response and secure stability on steep descents.

• Robust Load Support Components:

  Features a 28-ton single-action heavy-duty landing gear system alongside a dual interchangeable kingpin ($2\text{''}$ and $3.5\text{''}$) to fit various prime movers seamlessly.

Advantages of 3 axle cargo trailer

1. High-strength steel frame for greater robustness, reducing maintenance costs and extending service life;

2. Reduced fuel consumption by lowering the trailer's weight;

3. High-profile front panels effectively prevent cargo spillage during transport.

Ready to enhance your transport efficiency?

Get a Free Quote Now

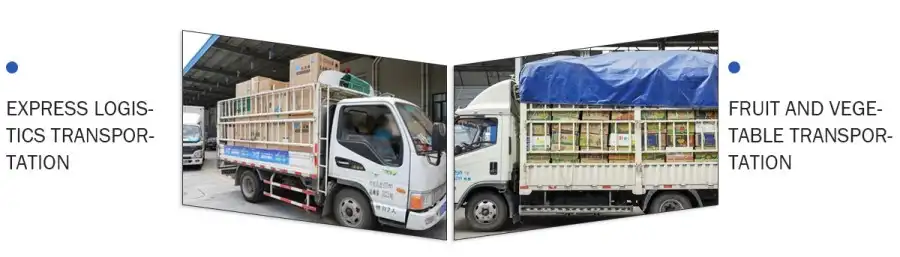

Applications of cargo semi trailer

The 3 Axle Cargo Trailer acts as an adaptable freight asset engineered to perform reliably across multiple core commercial applications:

• Agricultural Logistics: The secure $600\text{ mm}$ drop-side fence configuration allows for efficient bulk transport of bagged grains, harvested crops, timber, and livestock feed from farmlands to regional processing hubs.

• Palletized & Dry Cargo Hauling: Provides an ideal platform for overland transport fleets to carry industrial components, fast-moving consumer goods (FMCG), construction equipment, and stacked building materials safely.

• Cross-Border Freight Transport: Designed in full compliance with international road infrastructure standards, making it the perfect vehicle for long-haul intercity transport across varied national highways (Note: This chassis configuration is optimized for road transport, not heavy off-road mining operations).

Specifications

Packaging and Transportation

• Standard Protection: Nude packing, thorough anti-corrosion marine waxing applied before shipping.

• Flexible Transport Options: Efficient delivery via bulk cargo ship, roll-on/roll-off (ro-ro) vessel, or secured on a flat rack container depending on destination port capabilities.

Why Choose Us?

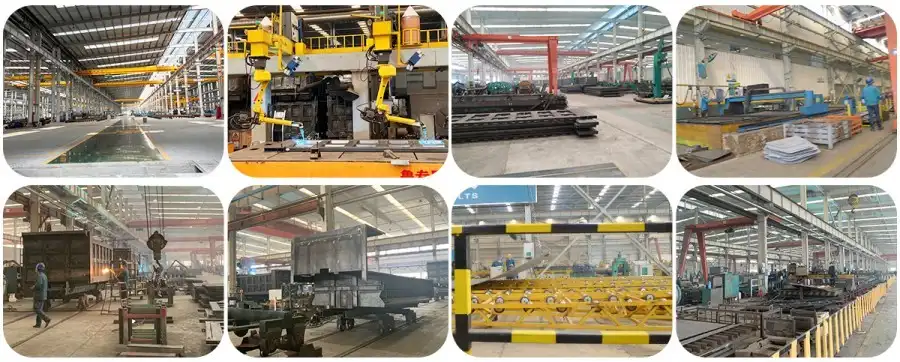

Our company, established in 2005, is a professional manufacturer integrating production, research and development, and sales. We offer a range of trailers, including tanker trailers, 3 axle cargo trailers, and flatbed semi-trailers.

With high-standard machinery and automated equipment, a strong R&D team, and an elite sales team, we have partnerships with companies such as Sinotruk, Shacman, FAW Group, DFAC, XCMG Group, LiuGong Group, and SEM Group. Our mature after-sales system allows us to meet the diverse needs of our clients.
