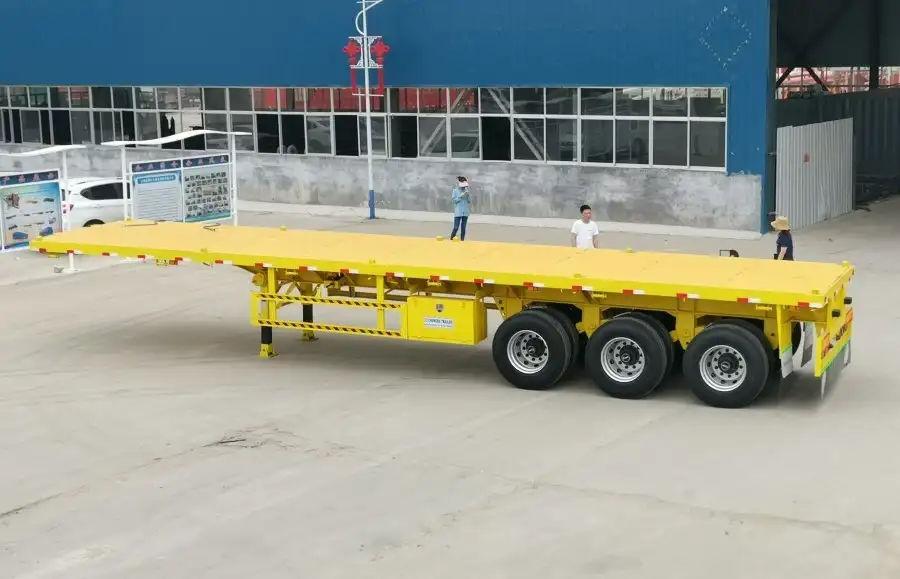

3 Axle Flatbed Trailer
3 axle flatbed trailers are mainly used in ports, logistics, and docks to transport 20-foot, 40-foot, and 53-foot and larger containers as cargo carriers.
3 Axle Flatbed Trailer
- Home
- > Products
- > Trailer
- > Flatbed Trailer
- > 3 Axle Flatbed Trailer
3 Axle Flatbed Trailer
Send Inquiry
Chat Now
Product Details
3 Axle Flatbed Semi Trailer — Heavy-Duty Container & Cargo Transport Solution 20 years of manufacturing expertise supplying semi-trailers to Africa, Asia, and South America. This 3-axle flatbed trailer features Q345 carbon steel I-beam main frame (500mm height, 14/16/8mm plates), 3mm checkered steel loading platform, JOST landing gear, WABCO emergency braking, and FUWA axles. 40,000kg loading weight, 12,500 x 2,500 x 1,600mm overall dimensions, with two-component high-temperature resistant coating designed for African environments. Fully customizable to your specifications. |
Want a detailed quote with shipping to your port?
Join 500+ buyers who trust our factory-direct supply.
Technical Specifications
| Specification Item | Technical Data |
|---|---|
| Trailer Model | 3 Axle Flatbed Trailer |
| Overall Dimensions (L x W x H) | 12,500 x 2,500 x 1,600 mm |
| Loading Weight | 40,000 kg |
| Axle | 3 x 13 Ton Axle |
| Main Beam | Q345 Carbon Steel, 500mm Height (Upper 14mm, Lower 16mm, Middle 8mm) |
| Platform Plate | 3mm Diamond Plate |
| Side Beam | Q235 16# Channel Steel |
| Suspension System | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90(W)mm x 13(Thick)mm x 10 Layer |
| Container Twist Locker | 12 pcs Container Locker |
| Tire Type & Quantity | 12R22.5, 12 Units |
| King Pin | 50# / 90# |
| Landing Gear | Standard 28 Ton Single Action Supporting Legs |
| Brake System | Dual Line Braking System (WABCO) |
| Brake Air Chamber | Six Double Chamber |
| Spare Wheel Bracket | 2 Pieces |
| Tool Box | 1 Standard |
Need a custom configuration? Tell us your requirements.
Key Features
Heavy-Duty Frame Construction I-shaped high-strength Q345 steel and Q235 channel steel construction ensures excellent torsional, impact, and collision resistance across complex road conditions. | Premium Brand Components JOST landing gear, WABCO emergency braking systems, and FUWA axles extend service life. Customer-specified brands also available. |
Anti-Slip Loading Platform 3mm checkered steel plate increases friction on the loading surface for secure cargo transport. | High-Temperature Resistant Coating Two-component coating specifically designed for African high-temperature environments — longer service life, peel-resistant, excellent heat resistance. |
Get a quote within 24 hours — no obligation.
Applications
3-axle flatbed semi trailers are mainly used in ports, logistics, and docks to transport 20-foot, 40-foot, 53-foot and larger containers as cargo carriers. Ideal for heavy machinery, steel coils, construction materials, and oversized industrial equipment.

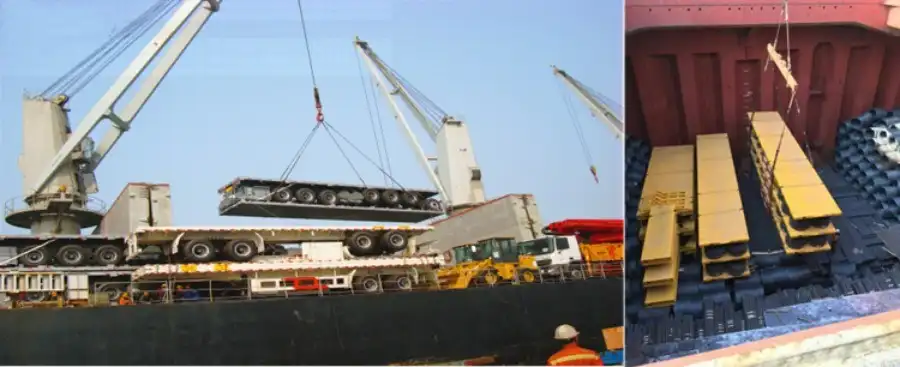

Packaging & Shipping
Naked and waxed, shipped in containers or bulk cargo ships. We always use the best packaging solutions to reduce shipping costs and offer you highly competitive prices.
FAQ
1. Who are we? Based in Shandong, China, since 2017. We sell to Africa (60%), Southeast Asia (20%), South Asia (10%), South America (5%), Oceania (3%), Middle East (2%). 101-200 employees. | 2. How do we guarantee quality? Pre-production sample before mass production; final inspection before every shipment. |
3. What can you buy from us? Dump Truck, Tractor Truck, Semi Trailer (Low Bed, Flatbed, Fuel Tanker, Bulk Cement), Low Bed Trailer, Trailer Parts, Fuel Tanker Trailers. | 4. Why buy from us? Established in 2005. Factory direct price, customized products, leading production technology, professional sales team. |
5. What services can we provide? Delivery: FOB, CFR, CIF, EXW. Payment: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Portuguese, Arabic, French. |
About Us
Shandong Chengda Truck Trailer Co., Ltd., established in 2005, is a qualified manufacturer of various truck trailers including 3-axle flatbed trailers, lowbed semi-trailers, freight trailers, dump trailers, and tanker trailers. With 20 years of industry experience, we supply customized semi-trailer solutions to Africa, Asia, and South America. Annual export value exceeds 50 million dollars with revenue approaching 600 million RMB. We maintain long-term partnerships with SINOTRUK, SHACMAN, FAW, DFAC, XUGONG Group, LIUGONG Group, SEM Group, and other world-famous enterprises. |
