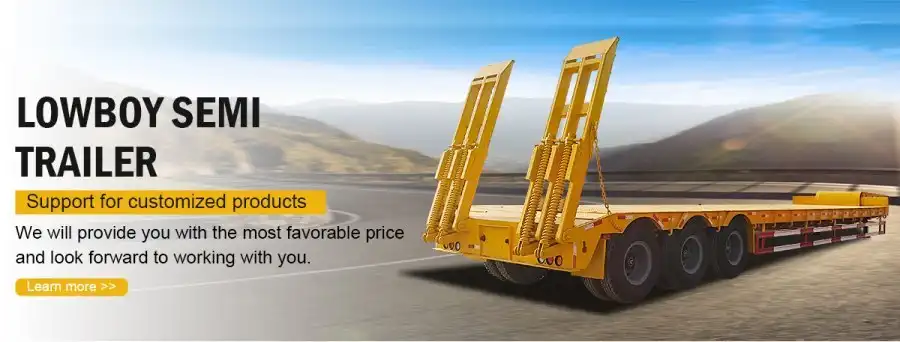

3 Axle Lowbed Semi Trailer — Heavy-Duty Low-Profile Transport for Machinery & Equipment Engineered for transporting heavy vehicles, rail vehicles, mining machinery, forestry machinery, and construction machinery including excavators, bulldozers, loaders, pavers, and cranes. Featuring a low center of gravity for superior stability and safety, Q345B main beam (500mm height, upper 16mm/lower 18mm/middle 10mm plates), Q235B 16# channel steel side beams, FUWA 13-16 ton axles, mechanical or air suspension, and 50#/90# kingpin. Overall dimensions: 13,000 x 3,000 x 1,650mm. Loading weight 60 tons, tare weight 8 tons. 1100R20 tires (12 units), 8.25x22.5 rims, 28-ton landing gear. Load capacity ranges from 20 to 150 tons depending on axle configuration. Fully customizable. |
Want a detailed quote with shipping to your port?
Join 500+ buyers who trust our factory-direct supply.
| Specification Item | Technical Data |
|---|---|
| Trailer Model | Lowbed Trailer |
| Overall Dimensions (L x W x H) | 13,000 x 3,000 x 1,650 mm |
| Loading Weight | 60 Tons |
| Tare Weight | 8 Tons |
| Main Beam | Q345B, Height 500mm (Upper 16mm, Lower 18mm, Middle 10mm) |
| Side Beam | Q235B, 16# Channel Steel |
| Rim | 8.25 x 22.5 |
| Landing Gear | Standard 28 Tons |
| King Pin | 50# (2 inch) or 90# (3.5 inch) |
| Suspension System | Mechanical or Air Suspension |
| Axle Brand | FUWA 13 - 16 Tons |
| Tire Type & Quantity | 1100R20, 12 Units |
Need a custom configuration? Tell us your requirements.

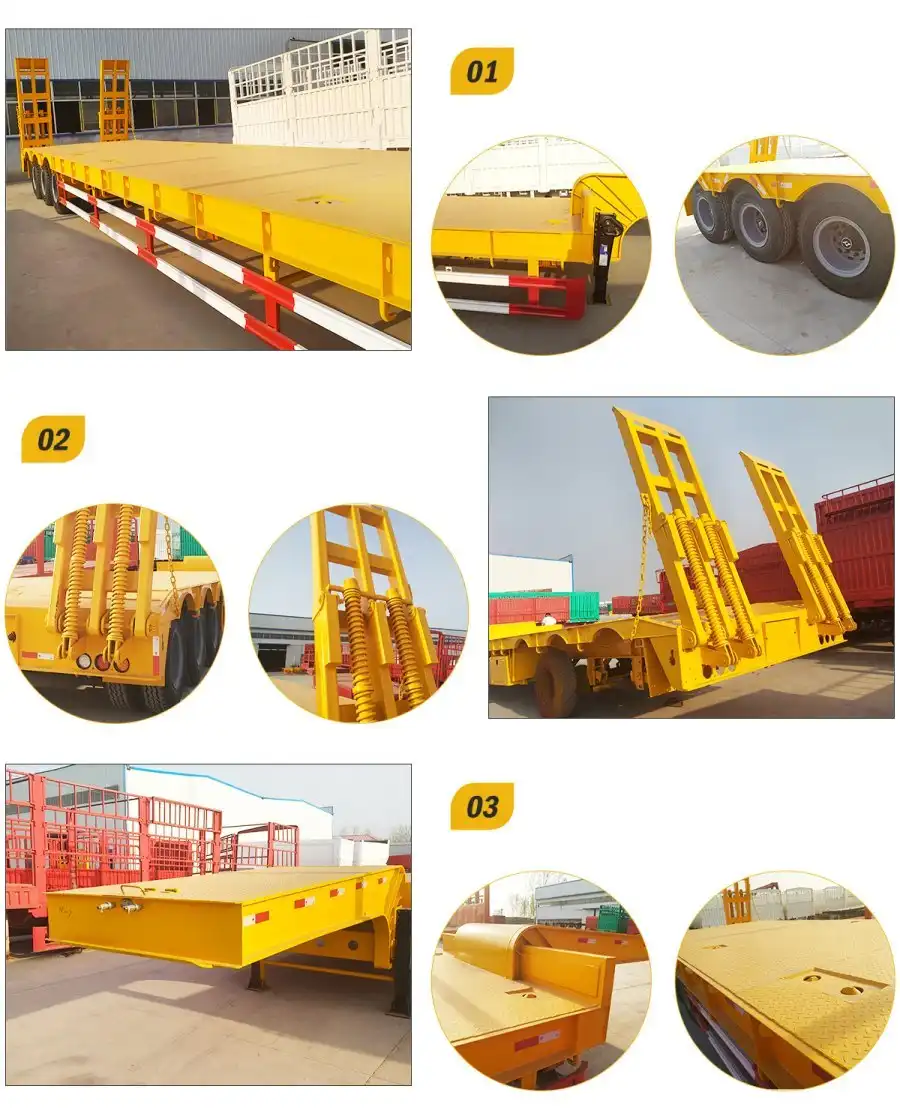

Versatile Machinery Transport Suitable for transporting excavators, bulldozers, loaders, pavers, cranes, large tanks, power plant equipment, and steel products. | Fully Customizable Loading dimensions, capacity (20-150 tons), colors, logos, tires, and configurations can be tailored to exact requirements. |
Low Center of Gravity Low frame and platform ensure superior stability and safety, enhancing the ability to transport extra-high loads. | Heavy-Duty Construction Q345B main beam (500mm height, 16/18/10mm) with Q235B 16# channel steel side beams for maximum structural integrity. |
Get a quote within 24 hours — no obligation.

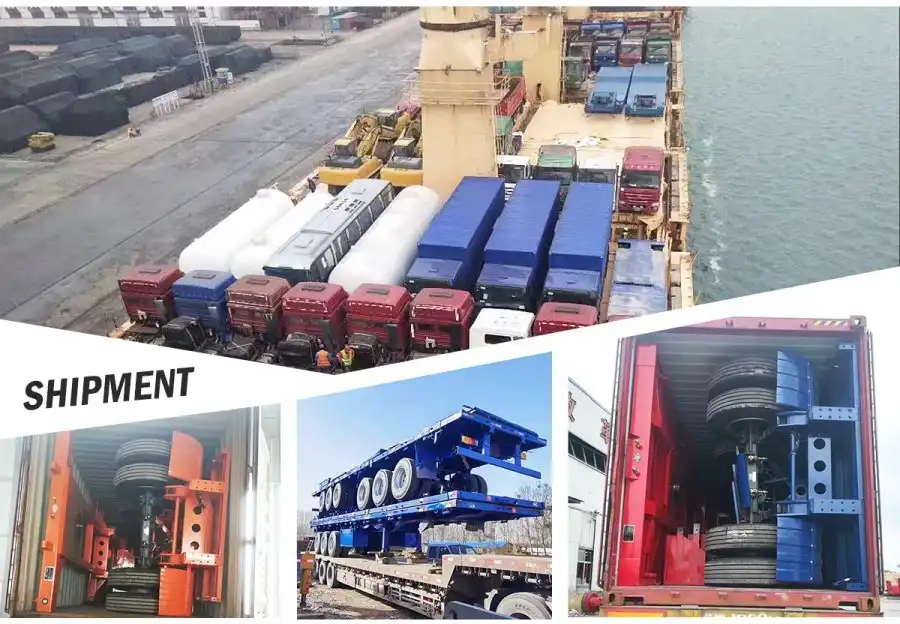

Nude and wax available, shipped by bulk carrier, flat deck, or Roll-on/Roll-off. Process: (1) Waxing — protective spraying against seawater corrosion; (2) Packaging — secured with steel wire for transport protection; (3) Shipping — reliable logistics from reputable freight providers ensuring safe and timely delivery.
1. Who are we? Based in Shandong, China, since 2017. We sell to Africa (60%), Southeast Asia (20%), South Asia (10%), South America (5%), Oceania (3%), Middle East (2%). 101-200 employees. | 2. How do we guarantee quality? Pre-production sample before mass production; final inspection before every shipment. |
3. What can you buy from us? Dump Truck, Tractor Truck, Semi Trailer (Low Bed, Flatbed, Fuel Tanker, Bulk Cement), Low Bed Trailer, Trailer Parts, Fuel Tanker Trailers. | 4. Why buy from us? Established in 2005. Factory direct price, customized products, leading production technology, professional sales team. |
5. What services can we provide? Delivery: FOB, CFR, CIF, EXW. Payment: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Portuguese, Arabic, French. |
Chengda Group, located in Jinan, Shandong, has 20 years of export experience specializing in a variety of semi-trailers including flatbed trailers, lowbed semi-trailers, and dump trailers. Our products are currently exported to over 60 countries and regions including Africa, the Middle East, Southeast Asia, and the Americas. We have a professional after-sales service team to promptly resolve any issues. |
