3 Axle Lowboy Trailer
3 Axle Lowboy Trailer for heavy equipment transport — 0.5-1.2m deck height, Q345B steel frame, FUWA axles, 30-80 ton capacity. Click for specifications.
3 Axle Lowboy Trailer
- Home
- > Products
- > Trailer
- > Lowbed Trailer
- > 3 Axle Lowboy Trailer
3 Axle Lowboy Trailer
Send Inquiry
Chat Now
Product Details

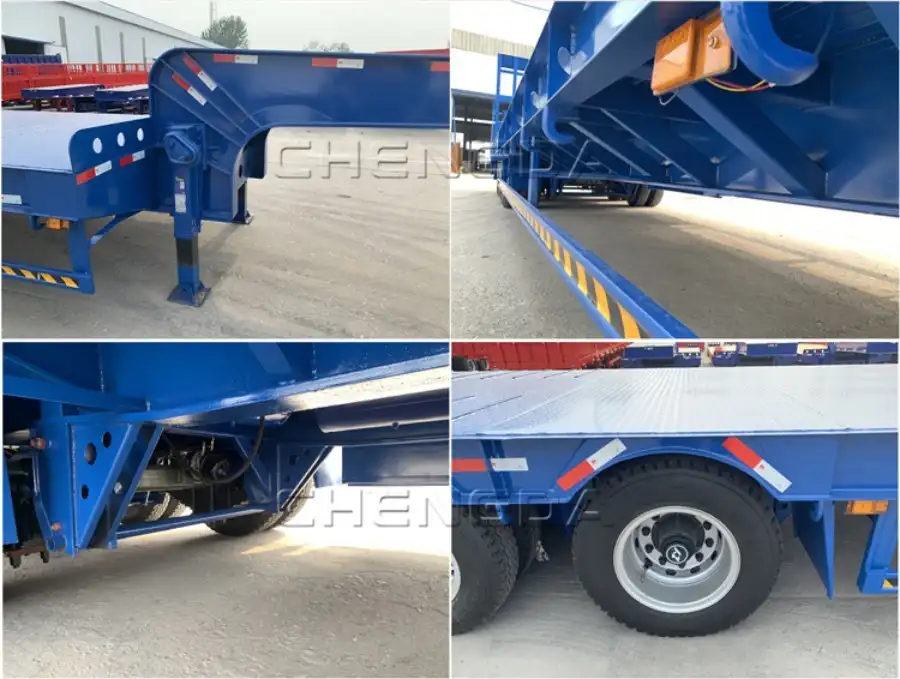

3 Axle Lowboy Trailer — Heavy-Duty Low-Profile Transport for Oversized Machinery Premium verified options available in brand new and certified used conditions. Designed for heavy-duty hauling of large construction machinery and oversized cargo. Featuring a high-strength Q345B main beam (500mm height, upper 16mm/lower 18mm/middle 10mm plates) paired with FUWA 13-16 ton axles, Q235B 16# channel steel side beams, and 12 units of 1100R20 tires. Overall dimensions: 13,000 x 3,000 x 1,650mm. Loading weight 60 tons, tare weight 8 tons. Standard 2-inch or 3.5-inch removable kingpin and 28-ton landing gear. Mechanical or air suspension available. The very low loading platform height provides excellent stability and safety during transport. |
Want a detailed quote with shipping to your port?
Join 500+ buyers who trust our factory-direct supply.
Technical Specifications
| Specification Item | Technical Data |
|---|---|
| Trailer Model | Lowbed Trailer |
| Overall Dimensions (L x W x H) | 13,000 x 3,000 x 1,650 mm |
| Loading Weight | 60 Tons |
| Tare Weight | 8 Tons |
| Main Beam | Q345B, Height 500mm (Upper 16mm, Lower 18mm, Middle 10mm) |
| Side Beam | Q235B, 16# Channel Steel |
| Rim | 8.25 x 22.5 |
| Landing Gear | Standard 28 Tons |
| King Pin | 50# (2 inch) or 90# (3.5 inch) |
| Suspension System | Mechanical or Air Suspension |
| Axle Brand | FUWA 13 - 16 Tons |
| Tire Type & Quantity | 1100R20, 12 Units |
Need a custom configuration? Tell us your requirements.
Core Advantages & Key Features
High-Tensile Structural Integrity Reinforced 500mm main frame using Q345B steel (16mm/18mm/10mm plates) for optimal resistance to deformation under maximum loads. | Heavy-Duty Payload Capacity Safely handles loads of 60 tons with 12 units of 1100R20 tires ensuring even weight distribution and minimized ground pressure. |
Superior Versatility Standard 2-inch or 3.5-inch removable kingpin with 28-ton landing gear ensures compatibility with diverse tractor head configurations worldwide. | Maintenance-Free Engineering Premium FUWA brand axles renowned for long service intervals, significantly reducing fleet downtime and maintenance overheads. |
Flexible Suspension Options Highly adaptable suspension system — available in mechanical or air-ride configurations — providing smooth stability and cargo protection regardless of road conditions. |
Key Advantages
Ultra-Low Loading Platform Very low platform height results in a low center of gravity, providing excellent stability and safety during transport while ensuring cargo integrity. |
Even Load Distribution Three axles distribute the load evenly, reducing tire and road wear and effectively extending the trailer's lifespan. |
Complete Customization Solution Flexible customization options available to meet various transportation needs and regional regulatory requirements. |
Get a quote within 24 hours — no obligation.

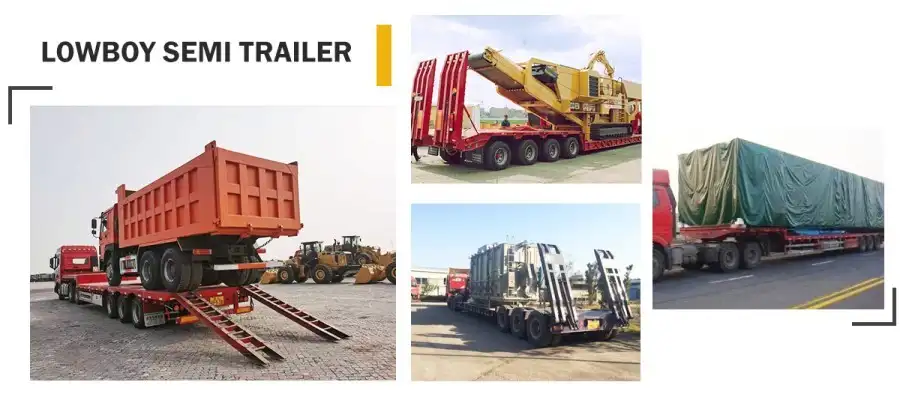

Application Fields
The 3 Axle Lowboy Trailer is an essential workhorse in heavy industry, optimized for secure and efficient transportation in the following sectors:
Construction & Infrastructure Ideal for moving large-scale excavators, bulldozers, wheel loaders, and other heavy construction machinery between project sites. |
Energy & Power Projects Efficiently transports oversized power transformers, wind turbine components, and massive industrial generators. |
Heavy Industrial Logistics Reliable for hauling prefabricated concrete structures, steel components, and massive metal pipes that require a low center of gravity for safe transit. |

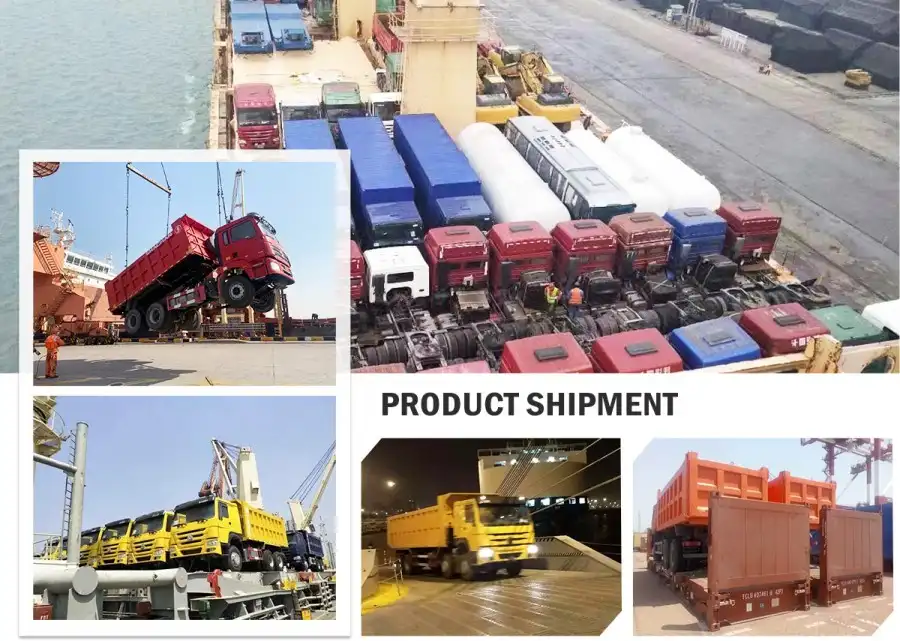

Packaging & Shipping
Naked, polished with water wax before shipment. Available by 40ft/45ft/40FR container, Bulk/Ro-Ro vessel, or as per your requirements. To prevent seawater corrosion, we carefully wrap goods with film or cover with waterproof tarpaulins, ensuring they maintain a good appearance upon arrival in Africa, Australia, South America, and beyond.
FAQ
1. Who are we? Based in Shandong, China, since 2017. We sell to Africa (60%), Southeast Asia (20%), South Asia (10%), South America (5%), Oceania (3%), Middle East (2%). 101-200 employees. | 2. How do we guarantee quality? Pre-production sample before mass production; final inspection before every shipment. |
3. What can you buy from us? Dump Truck, Tractor Truck, Semi Trailer (Low Bed, Flatbed, Fuel Tanker, Bulk Cement), Low Bed Trailer, Trailer Parts, Fuel Tanker Trailers. | 4. Why buy from us? Established in 2005. Factory direct price, customized products, leading production technology, professional sales team. |
5. What services can we provide? Delivery: FOB, CFR, CIF, EXW. Payment: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Portuguese, Arabic, French. |
Why Choose Us

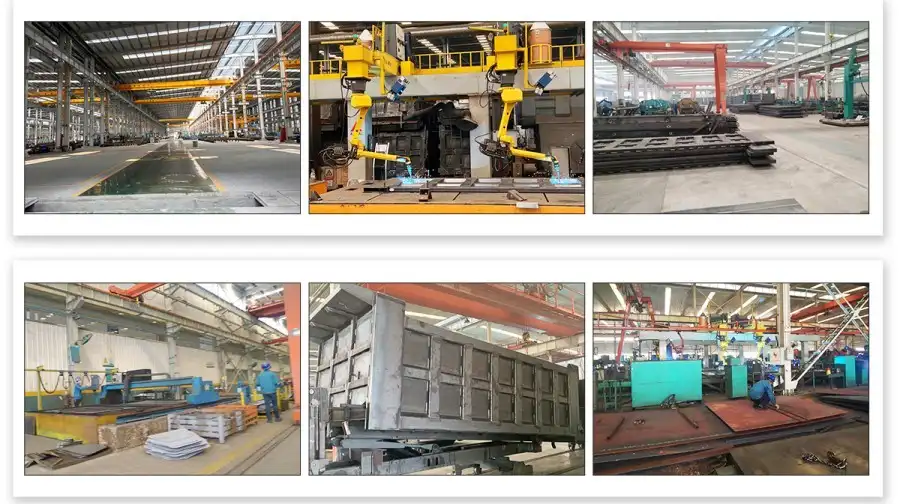

Chengda Group is a professional exporter of semi-trailers and trailer parts with its own manufacturing factory. We specialize in lowboy trailers, flatbed semi-trailers, skeleton semi-trailers, cargo transport semi-trailers, tanker semi-trailers, bulk cement semi-trailers, dump truck semi-trailers, and more. Customers from more than 80 countries visit us from East Africa, West Africa, South America, Asia, and beyond to inspect their truck orders and solidify long-term fleet supply partnerships. |
Customer Visits
