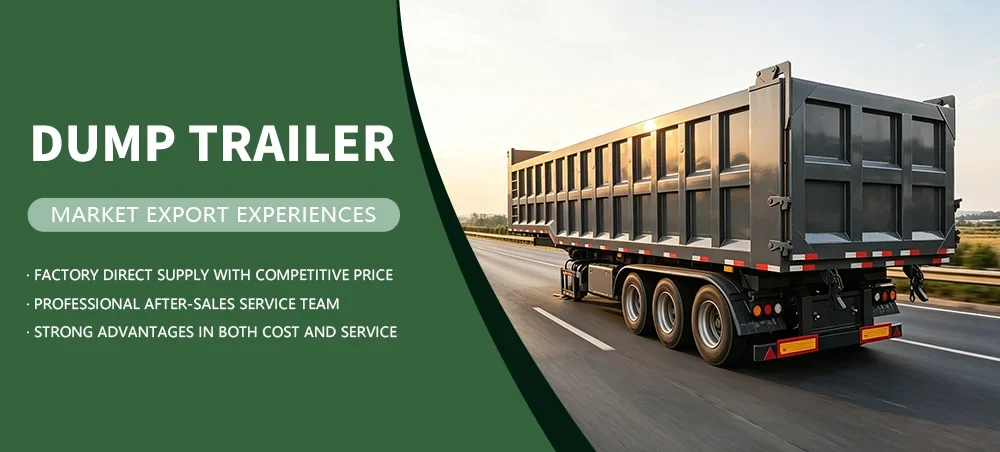

3 Axle Dump Semi Trailer — Heavy-Duty Factory-Certified Tipper Brand new, factory-certified heavy-duty tipper semi trailer built for mining logistics, sand and gravel transport, and bulk excavation material delivery. Featuring a tri-axle suspension layout with a heavy-duty HYVA front lifting hydraulic cylinder, with customizable volume options. Box design and configuration can be customized to your requirements. |
Interested? Contact us for pricing and availability.
Need a custom configuration? Tell us your requirements.
| Technical Parameter | Specification Detail |
|---|---|
| General | |
| Vehicle Model | 3 axle dump semi trailer |
| Payload Capacity | 40,000 kg - 60,000 kg (40T - 60T) |
| Cargo Box Volume | 28 m³ - 45 m³ (Customizable rectangular or U-shape design) |
| Hydraulic & Running Gear | |
| Hydraulic Lifting System | HYVA Brand Front Hydraulic Telescopic Cylinder |
| Axle Brand & Quantity | 3 Axles x 13T / 16T (FUWA / BPW / Heavy Duty Brand) |
| Landing Gear | JOST / Standard 28 Ton Heavy Duty Two-Speed Operation |
| Tires | 12.00R20 / 315/80R22.5 Heavy Duty Tubeless / Radial Steel Tires |
| Body Structure | |
| Box Material Thickness | Bottom: 6mm - 8mm; Side Wall: 4mm - 6mm High-Tensile Steel |
Join 500+ buyers who trust our factory-direct supply.

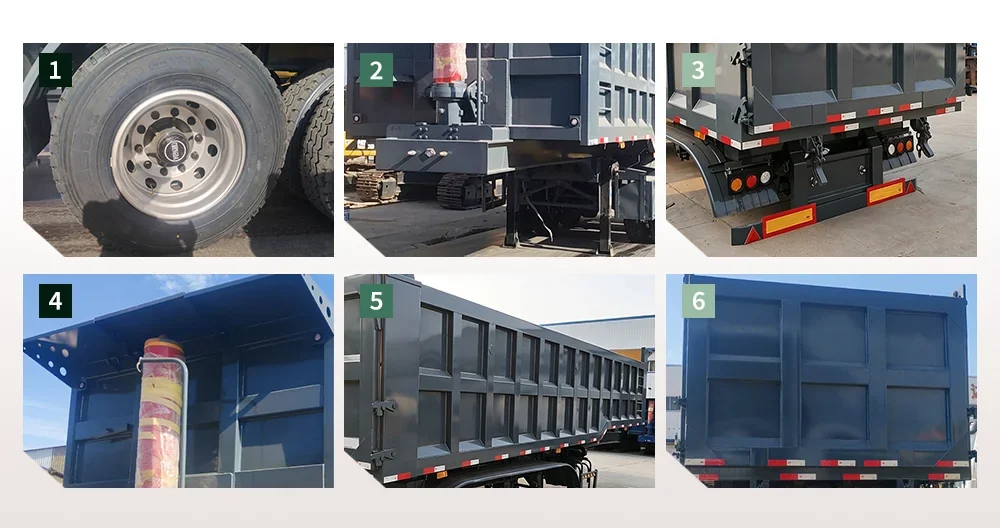

HYVA Front Hydraulic Lifting Cylinder Renowned HYVA front-mount telescopic cylinders ensure smooth hydraulic lifting, high safety margins, and zero tipping risks. | Wear-Resistant & High-Tensile Steel Body Cargo box built from Q345B / NM450 abrasion-resistant steel withstands impact from rough stones and heavy gravel. |
Reinforced Main Frame Structure Robust submerged-arc welded main beams prevent frame distortion under extreme off-road overload conditions. | Automatic Mechanical Rear Door Latch Automatic mechanical locking system ensures secure door sealing during transport and instant opening upon tipping. |
Heavy-Duty Tri-Axle Suspension System 13T/16T high-load capacity axles paired with heavy-duty leaf spring or air-suspension setups for rugged terrains. |
Ready to enhance your transport efficiency?

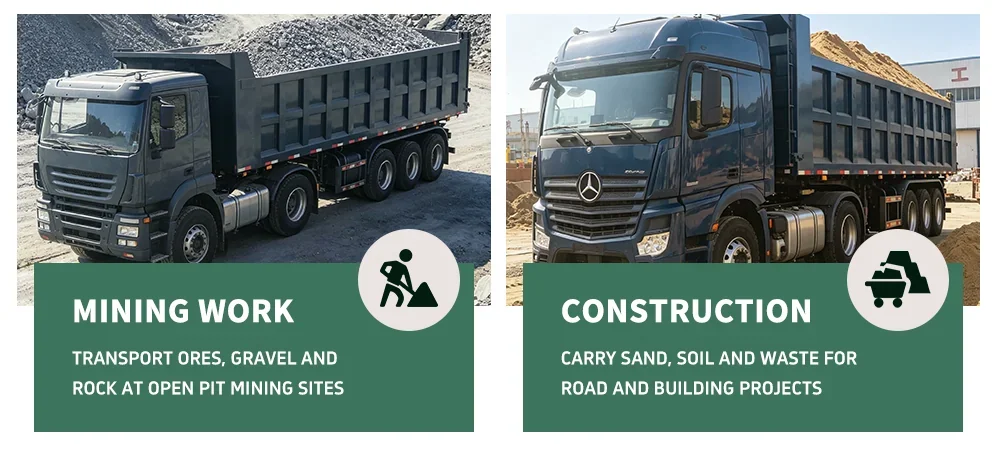

The 3 axle dump semi trailer provides an indispensable transport solution across demanding industrial operations:
Mining & Quarry Operations Efficiently hauling heavy iron ore, coal, stone aggregates, and quarry rocks out of mining pits. |
Major Earthmoving & Infrastructure Projects Transporting large quantities of excavated soil, gravel, and sand to highway and building construction sites. |
Bulk Port Freight Operations Moving imported clinker, coal, and industrial mineral materials from port terminals to inland storage depots. |
Packaging Nude with waxing before shipping, ensuring the trailer arrives in excellent condition. | Shipping Shipped by bulk ship, Ro-Ro ship, or flat rack container to your designated port. |
Who We Are Established in 2005, a qualified manufacturer of trailers and semi-trailers with integrated production, R&D, and professional sales teams. Annual export value above 50 million dollars, revenue nearly 600 million RMB. | Global Partners Long-term business relationships with SINOTRUK, SHACMAN, FAW, DFAC, XUGONG Group, LIUGONG Group, SEM Group, and mature after-sales systems to meet different customer needs. |
1. Who are we? Based in Shandong, China, since 2017. We sell to Africa (60%), Southeast Asia (20%), South Asia (10%), South America (5%), Oceania (3%), Middle East (2%). 101-200 employees. | 2. How can we guarantee the quality? Always a pre-production sample before mass production; always final inspection before shipment. |
3. What can you buy from us? Truck (Dump Truck, Tractor Truck), Semi Trailer (Low Bed, Flatbed, Fuel Tanker, Bulk Cement), Low Bed Trailer, Trailer Parts, Fuel Tanker Trailers. | 4. Why should you buy from us and not from other suppliers? Established in 2005, our plant is a qualified manufacturer of various trailers. Factory direct price, customized products, leading production technology, professional sales team. |
5. What services can we provide? Accepted Delivery Terms: FOB, CFR, CIF, EXW. Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF. Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash. Language Spoken: English, Chinese, Spanish, Portuguese, Arabic, French. |
Customers from more than 80 countries visit us — from East Africa, West Africa, South America, Asia, and beyond.
We provide full export documentation, ISO quality management certificates, and GCC/CCC compliance documentation to facilitate quick customs entry and local operations.
